Deployment architecture

BackROLL deployment is fully integrated with docker-compose, greatly reducing maintenance and installation/update procedures.

The application can be split with the following blocks:

• CORE container, running the webserver that hosts the RESTful API

• Workers that runs long running tasks (eg. backup / restore process) in the background

• Scheduler which can add or delete scheduled (crontab format) tasks at runtime

• Task manager UI/API to track and monitor all your tasks in the background

• UI, to allow a simplified use of BackROLL

You can either choose to use the UI or/and the RESTful API.

Database and storage

Information related to architecture

A separated database is needed to store some information, like your logical pools, your backup policies and hosts list. No password is stored in the database as we choose to rely on an OpenID connector to handle authentication. BackROLL also creates a SSH keypair during installation to handle connection to hosts.

The access to the web interface is by default in HTTP only. We strongly advise you to use a reverse-proxy (Nginx, Apache2, Haproxy, etc.) to manage HTTPS.

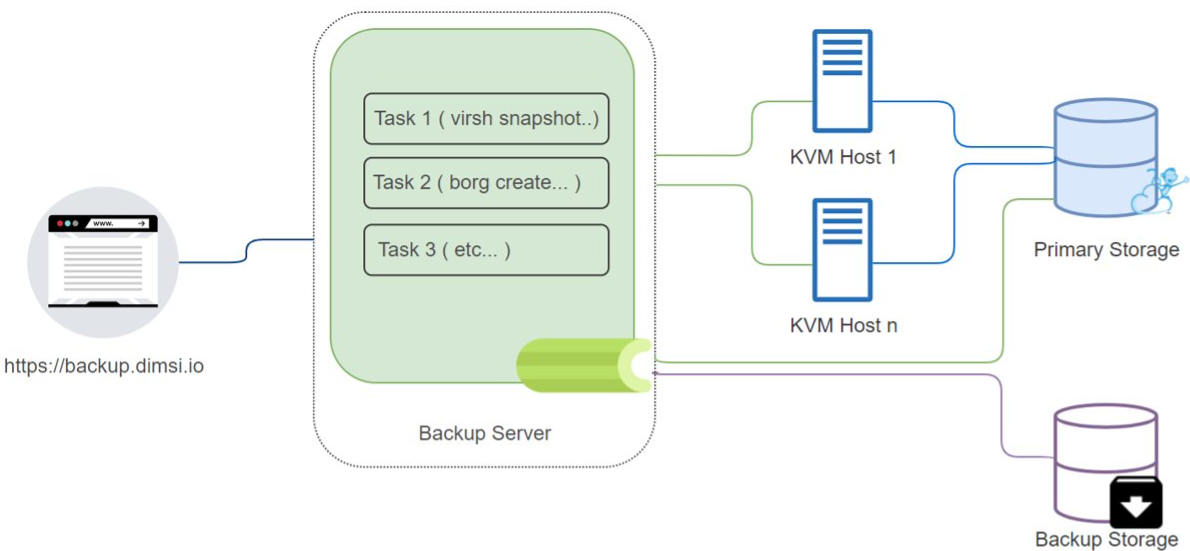

Interfacing with KVM hosts and backup storage

Backup storage must be directly accessible from a directory on the server.

Like /mnt/backup-storage1

This directory can be a mount point of NFS storage, local storage (not recommended), etc.
